Appendix A Block Diagram

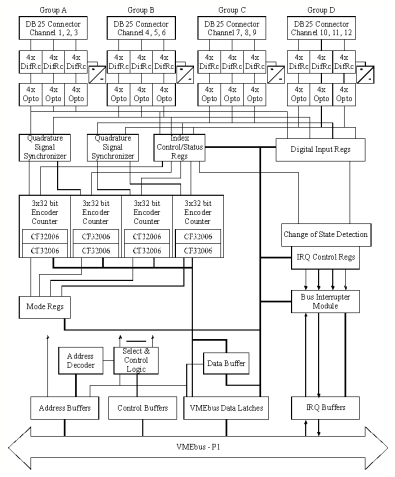

Figure A-1 Block Diagram CC133

CC133 - 12 Channel Incremental Encoder Interface With Isolated Inputs - 30 SEP 1996
