Chapter 5 Programming Considerations

5.10 User LEDs

A total of six User LEDs are available at the CC175 module. User LEDs 1, 2 and 3 are grouped for CAN channel 0 and User LEDs 4, 5 and 6 are grouped for CAN channel 1.

The LEDs will light up when a logic '0' is written to the defined bit position. The LEDs are turned off when these bits are set to '1'.

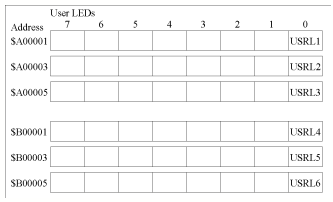

The following figure shows the memory locations of the User LEDs.

Figure 5-8 User LEDs
