4.3.3 VMEbus Interrupt Level

JB3 allows the user to select the interrupt level that is generated on the VMEbus. JB3 is decoded as a 3-bit binary input. A jumper installed represents a "0". No jumper installed represents a "1". When level 0 is selected (i.e. all jumpers installed), the interrupt function will be disabled. The figure on the next page shows the possible jumper settings and their status.

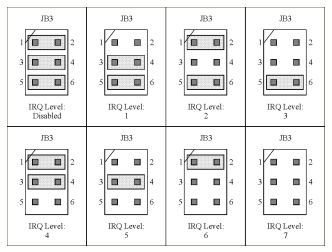

Figure 4-2 Interrupt Level Selection

CC121 - ARCNET Interface for VMEbus - 30 SEP 1996
