Chapter 4 Installation Procedures

4.4 DIP Switch Setting

An 8-position DIP switch setting can be read by the MPU. The switches are numbered from 1 through 8, and each switch can be switched 'on' or 'off'. An 'on' position is read as '0' and an 'off' position is read as '1'.

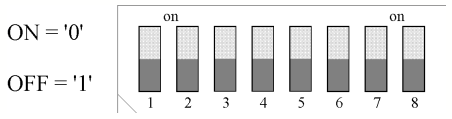

Figure 4-14 DIP Switch Setting

The meaning of the switch settings is defined by the software running on the CC175.
