4.3 Jumper Settings

4.3.1 IRQ Level

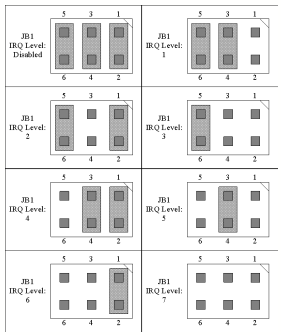

The setting of jumper block JB1 defines which interrupt line will be asserted during an interrupt request to the VMEbus.

Figure 4-1 Interrupt Request Level
