4.3 Jumper Settings

4.3.9 Physical Interface Output

When the on-board physical interface is used, jumpers must be placed on jumper block JB11 and JB12.

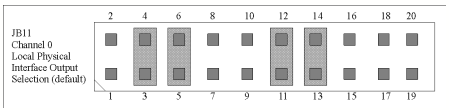

Figure 4-11 Physical Interface Output Channel 0

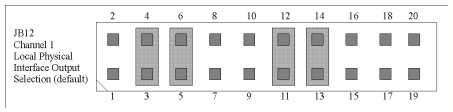

Figure 4-12 Physical Interface Output Channel 1

CC175 - Dual Channel Intelligent CAN Interface for VMEbus - 30 SEP 1996
Copyright © 1996 Compcontrol, Inc.
