4.3 Jumper Settings

4.3.8 Physical Interface Input

When the on-board physical interface is used, jumpers must be placed on jumper block JB9 and JB10.

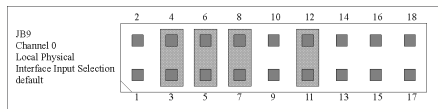

Figure 4-9 Physical Interface Input Channel 0

When a different physical interface is required for channel 0, a mezzanine module can be placed between jumper JB9 and JB11. A more detailed description of the available signals is given in paragraph 4.5.2.

Figure 4-10 Physical Interface Input Channel 1

When a different physical interface is required for channel 1, a mezzanine module can be placed between jumper JB10 and JB12.
